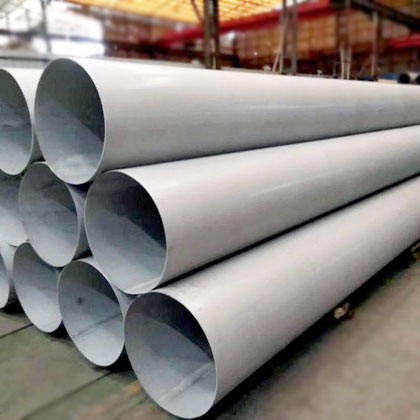

Welded Stainless Steel Tube

Standard: ASTM, EN, GB, JS
Grade: ASTM A249 A312 A358 ASME SA 249 SA 312 SA 358 TP304 TP304L TP309S TP310S TP316 TP316L TP316Ti TP321 TP317L TP347H
Specification: (can customized by request)
Wall Thickness: 0.5-45mm
Outer Diameter: 6-610mm
Length: 6m or as customers' request

How is Welded Stainless Steel Tube Made?

Stainless steel welded pipe, is commonly formed by moving the cut coil through a series of rollers, and then welded into the pipe shape in a chemically neutral environment. A rolling application is used to forge the welded seam, and a heat treating process is used to finish the welded stainless steel tube. The production process of stainless steel welded pipe is simple, which is of high production efficiency, variety of specifications, and less investment in equipment, but the general strength of welded pipe is lower than seamless steel pipe. According to welding technology, it can be divided into:
  • Automatic welding method: submerged arc welding, plasma welding;
  • Manual welding method: argon arc welding

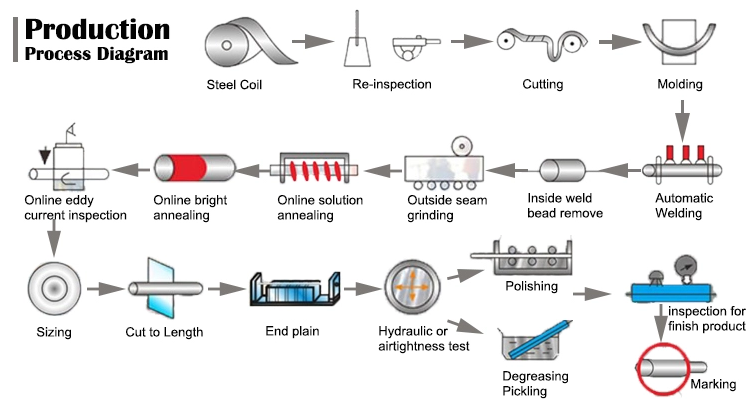

Process of Welded Stainless Steel Pipe

Comparisons between Welded & Seamless stainless steel Tube

Due to the manufacturing techniques of stainless steel welded tube, It has the characteristics as follows:

  • Larger ranges of sizes

Welded tubing’s easier manufacturing process can produce larger diameter tubing with thinner wall sizes for less. Such properties are more difficult to produce in seamless tubing.

  • Cost efficient

Welded stainless steel tube has less drawing and annealing in the manufacture of a welded and drawn tube, so welded stainless steel tube is generally cost less than seamless tubing in producing the same standard and specifications tubes.

  • High precision

Generally, stainless steel welded tube has high precision, uniform wall thickness, high inner surface brightness can be arbitrarily fixed. Therefore, it embodies its advantages in the application of high precision, medium and low-pressure fluid.

The comparisons list of welded and seamless steel pipes are as follows:

Welded stainless steel pipe Seamless stainless steel pipe
Cheaper More expensive
Larger OD and WT ranges Standard sizes
Middle and low working pressure Higher working pressure
Higher precision Lower precision

With the rapid development of continuous rolling production of high quality strip steel and the progress of welding and inspection technology, the quality of welding seam has been constantly improved, the varieties and specifications of welded stainless steel tubes are increasing day by day, and the seamless steel tubes have been replaced in more and more fields, especially in the aspects of pipe for heat exchange equipment, decorative pipe, medium and low pressure fluid pipe and so on.

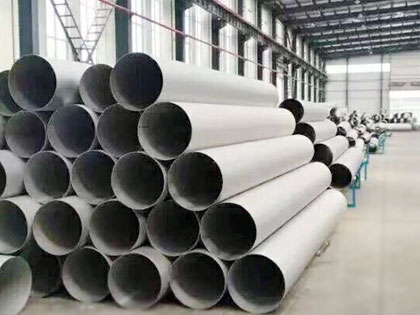

stainless steel welded pipe
stainless steel welded pipe

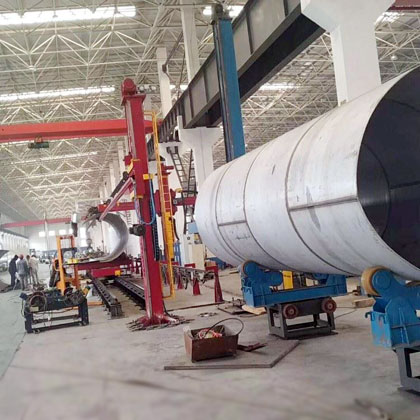

stainless steel welded pipes

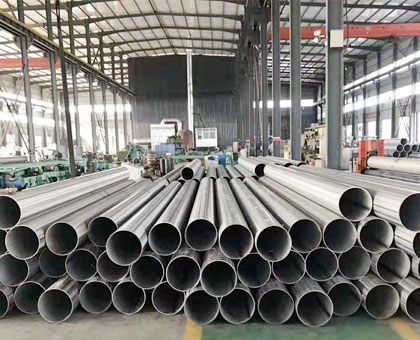

welded stainless steel tube

Applications of AHL Welded Stainless pipe

Welded stainless pipe is often preferred by applications which require lower anti-pressure ability and corrosion resistance in general environments. AHL is specialized stainless steel welded pipe manufacturer, our welded stainless tubes have been served in industries such as:

  • Architectural applications
  • Hypodermic needles
  • Automotive industry
  • Food and beverage industry
  • Marine industry
  • Pharmaceutical industry
Grade Applications
ASTM A213 Seamless Ferritic And Austenitic Alloy-Steel Tubes For Boiler, Superheater And Heat-Exchanger
ASTM A269 Boiler, Heat Exchanger, Superheater & Condenser
ASTM A312 Pipeline For Conveying Corrosive Fluid
ASTM A514 Intermediate-And Higher-Temperature Service-Boilers, Pressure Vessel
ASTM A789 Petrochemical Industry, Chemical Fertilizer Industry, Oil Refining Industry, Oil And Gas Industry
DIN17456/17458 Construction Tubing, Pipes For The Food, Pharmaceutical and Automobile Industries, Domestic Installation and Decorative Purposes
JISG3459 Piping of Corrosion Resistance, Low And High Temperature Service
JIS G3463 Machinery Industry, Chemical Industry, Thermal Equipment, Mining, Construction & Decoration

Specifications of AHL Welded Stainless Steel Pipe

Welcome to the Highest quality welded stainless steel tube supplier. Over 20 years of manufacturing experience, we supply stainless steel tubing: 4.5" OD ~48" OD and other more sizes.
The below chart is the specification and properties of part of our welded stainless steel tube for your reference:

Product Name
 Stainless Steel Welded Pipe
Grade 201/202/204/201/304/304L/309/309s/310/310s/316/316L/317/317L/321/317/317L
Outer Diameter 6 ~ 610mm (1/4-24)
Wall Thickness 0.5 ~ 45mm (0.0196-1.780)
Length 6m ~ 12m as customer's requirement
Surface 2B, 2D, No.1, No.4, BA, HL, 6K, 8K ,etc
Tolerance a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm

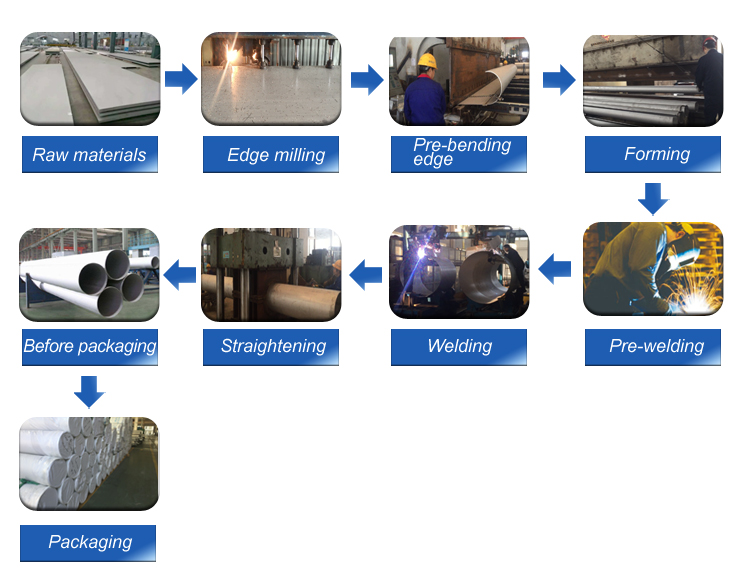

Manufacturing Process of Welded Stainless Steel Welded Tube

Process Of Seamless Stainless Steel Pipe

Stainless Steel Welded Pipe Tolerances
NPS Designator Permissible Variations in Outside Diameter
Over In. Under In.
1/8 to 1-1/2, incl 1/64 (0.015) 1/32 (0.031)
Over 1-1/2 to 4, incl 1/32 (0.031) 1/32 (0.031)
Over 4 to 8, incl 1/16 (0.062) 1/32 (0.031)
Over 8 to 18, incl 3/23 (0.093) 1/32 (0.031)


Nominal Wall Thickness:
NPS Designator Outside Diameter in. Schedule 5S in. Schedule 10S in. Schedule 40S in. Schedule 80S in.
1/4 0.540   0.065 0.088 0.119
3/8 0.675   0.065 0.091 0.126
1/2 0.840 0.065 0.083 0.109 0.147
3/4 1.050 0.065 0.083 0.113 0.154
1.0 1.315 0.065 0.109 0.133 0.179
1 1/4 1.660 0.065 0.109 0.140 0.191
1 1/2 1.900 0.065 0.109 0.145 0.200
2 2.375 0.065 0.109 0.154 0.218
2 1/2 2.875 0.083 0.120 0.203 0.276
3 3.500 0.083 0.120 0.216 0.300
3 1/2 4.000 0.083 0.120 0.226 0.318
4 4.500 0.083 0.120 0.237 0.337
5 5.563 0.109 0.134 0.258 0.375
6 6.625 0.109 0.134 0.280 0.432
8 8.625 0.109 0.148 0.322 0.500
10 10.750 0.134 0.165 0.365 0.500
12 12.750 0.156 0.180 0.375 0.500
