aluminum sheet

Are you looking for supplier of Aluminium Sheet or plate? AHL STEEL will be your choice

5052 aluminum

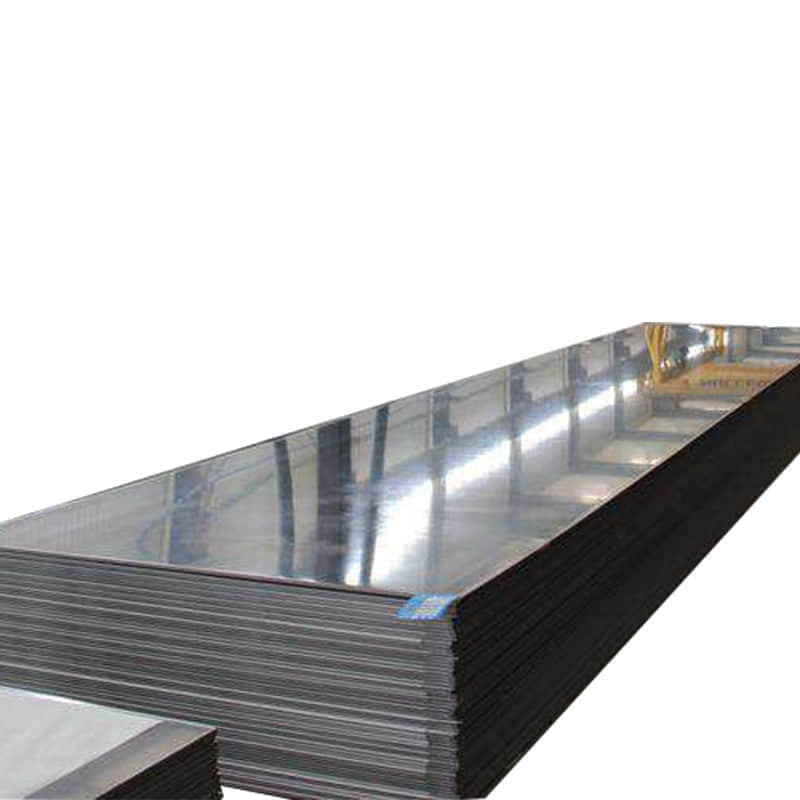

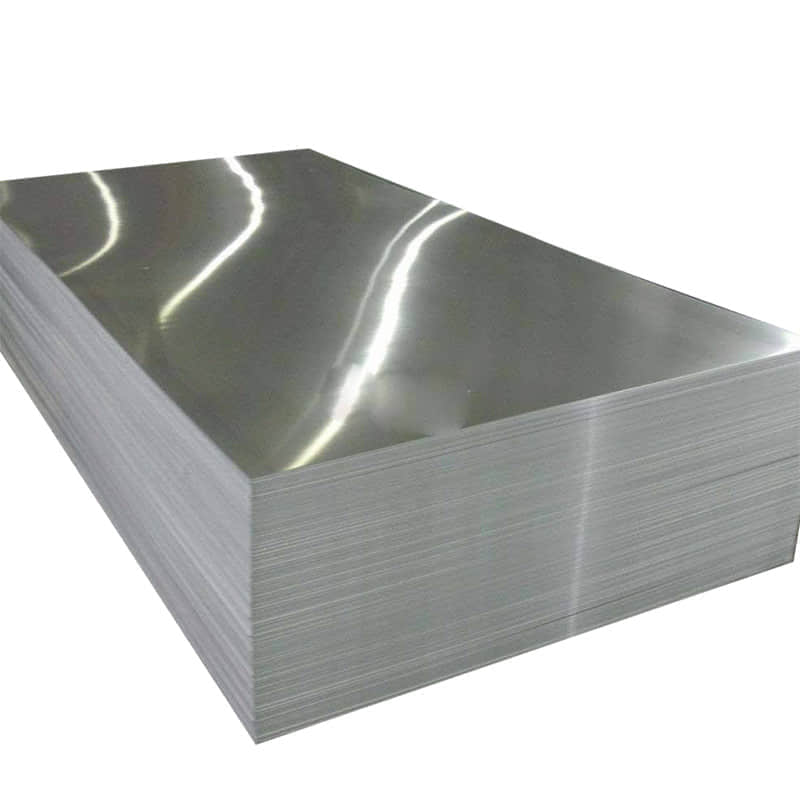

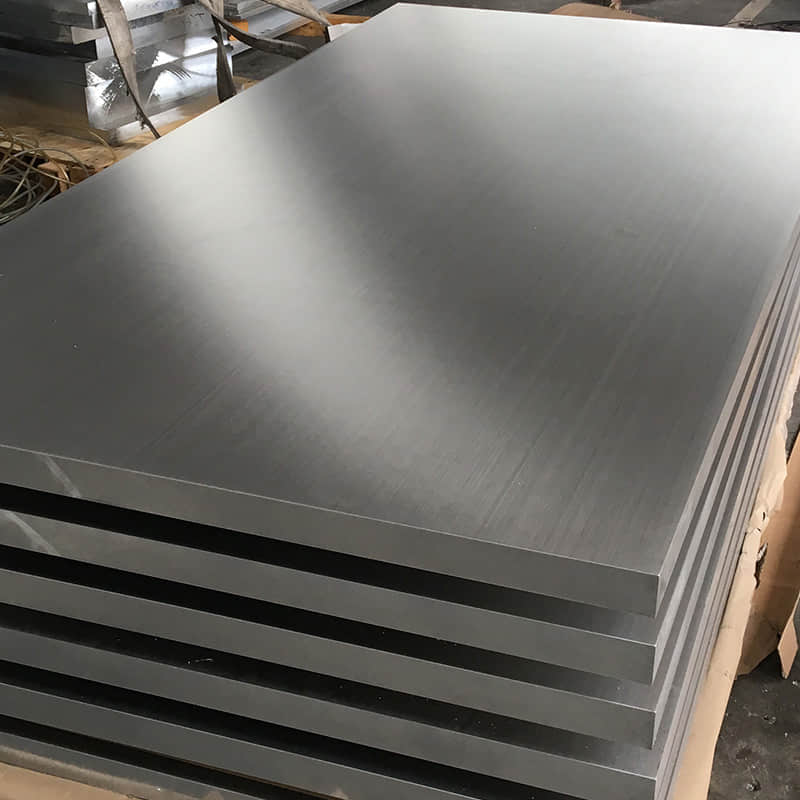

aluminum sheet

What is aluminum sheet

Aluminum sheet is a kind of plate produced by aluminum ingots, with the characteristics of lightweight, highly recyclable, corrosion resistance and sustained, aluminum metal has become a necessary in modern life and varies of industries.

According to the alloying component, it could be divided into:

  • High purity aluminum sheet (rolled from 99.9% purity aluminum)
  • Pure aluminum sheet (composition is basically rolled from pure aluminum)
  • Aluminum alloy plate (consisting of aluminum and auxiliary alloys, such as aluminum copper, aluminum manganese, aluminum silicon, aluminum magnesium, etc.)
  • Composite aluminum plate or brazed plate (special purpose of aluminum plate made by composite materials)
  • Aluminum-clad sheet (coated with thin aluminum sheet for special purpose)

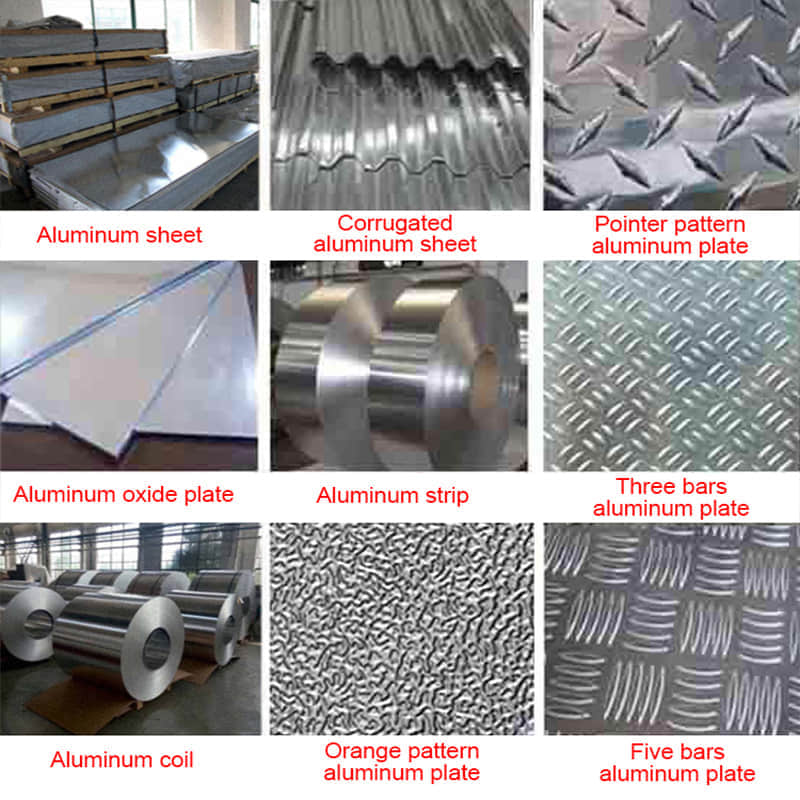

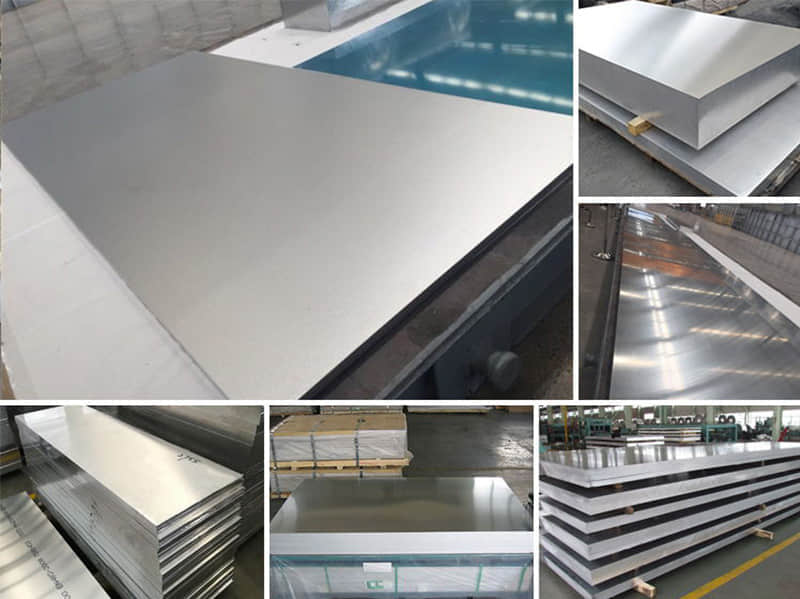

aluminium sheet aluminum sheet types

In terms of the thickness of the plate, it could be divided into:

  • Aluminum foil: less than 0.008inches thick
  • Aluminum sheet: 0.008inches~0.25inches thick
  • Aluminum plate: thicker than 0.25inches

Features of aluminum sheet

  • Highly recyclable, environmental protection and energy saving.
  • Stronger strength in cold temperatures.
  • Light weight.
  • Changeable physical properties by adding different alloy components.

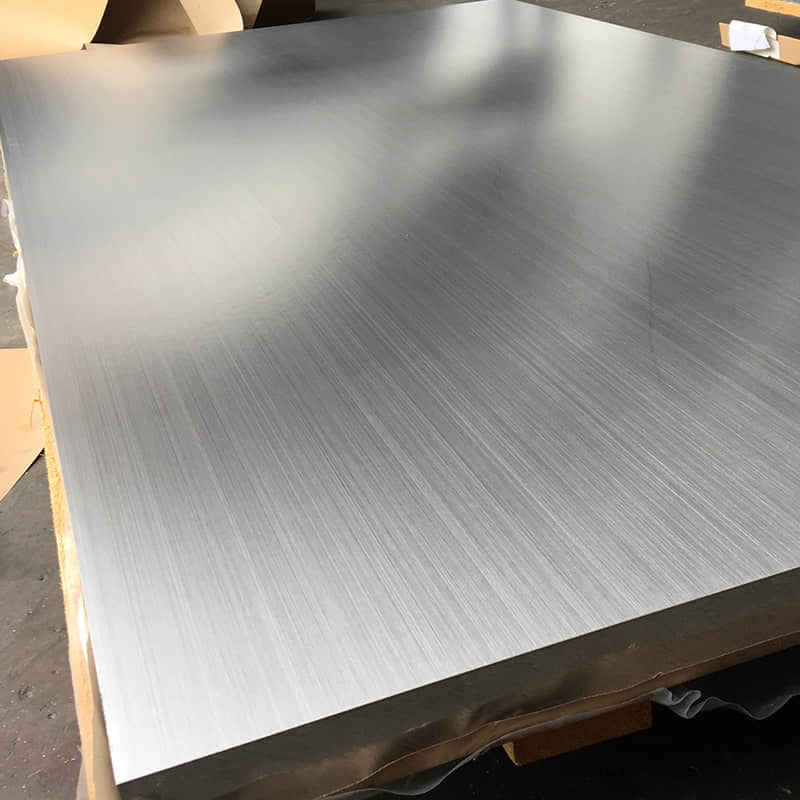

aluminum plate
aluminum plate

Specification

Aluminium Sheet / Aluminium Plate
1 Standard ASTM, B209, JIS H4000-2006,GB/T2040-2012,etc
2 Material 1000 2000 3000 4000 5000 6000 7000 8000
3 Width 50mm-2500mm or as the customer’s request
4 Longth 50mm-8000mm or as the customer’s request
5 Thickness 0.12mm-260mm
6 Surface Coated, Embossed,Brushed, polished, Anodized,etc
7 OEM service Perforated, Cutting special size, Doing flatness, Surface treatment, etc
8 Payterm FOB, CIF , CFR, etc
9 Payment T/T, L/C, Western Union, etc
10 Delivery Time Within 3 days for our stock size,15-20days for our production
11 Package Export standard package: bundled wooden box, suit for all kinds of transport, or be required
12 MOQ 200kg
13 Sample Free and available
14 Quality Certificate of Test, JB/T9001C, ISO9001, SGS, TVE
15 Export To Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand,Korea, India, Egypt, Kuwait, etc
16 Application Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc

Chemical Properties

Alloy Aluminum sheet/plate Chemical Properties
Si Fe Cu Mn Mg Cr Zn Ti OTHERS Al
1050 0.25 0.4 0.05 0.05 0.05 0.05 0.03 99.5
1070 0.2 0.25 0.04 0.03 0.03 0.04 0.03 99.7
1100 0.95 0.05-0.20 0.05 0.1 0.15 99
2024 0.5 0.5 3.8-4.9 0.30-0.9 1.2-1.8 0.1 0.25 0.15 0.15 Rem.
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.15 Rem.
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 0.25 0.15 Rem.
3005 0.6 0.7 0.3 1.0-1.5 0.20-0.6 0.1 0.25 0.1 0.15 Rem.
5005 0.3 0.7 0.2 0.2 0.50-1.1 0.1 0.25 0.15 Rem.
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1 0.15 Rem.
5252 0.08 0.1 0.1 0.1 2.2-2.8 0.05 0.1 Rem.
6061 0.40-0.8 0.7 0.15-0.40 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rem.
7075 0.4 0.5 1.2-2.0 0.3 2.1-2.9 0.18-0.28 5.1-6.1 0.2 0.15 Rem.

Physical Properties

ALUMINUM
ALLOY
Grade Normal
Temper
Temper Tensile Strength Yield Strength Elongation% Brinell Hardness
N/mm² N/mm² Plate Bar HB
1xxx 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu(2xxx) 2019 O,T3,T4,T6,T8 T851 450 350 10 - -
2024 O,T4 T4 470 325 20 17 120
Al-Mn(3xxx) 3003 O,H112,H O 110 40 30 37 28
3004 O,H112,H O 180 70 20 22 45
Al-Si(4xxx) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg(5xxx) 5052 O,H112,H H34 260 215 10 12 68
5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si(6xxx) 6061 O,T4,T6,T8 T6 310 275 12 15 95
6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg(7xxx) 7003 T5 T5 315 255 15 - 85
7075 O,T6 T6 570 505 11 9 150

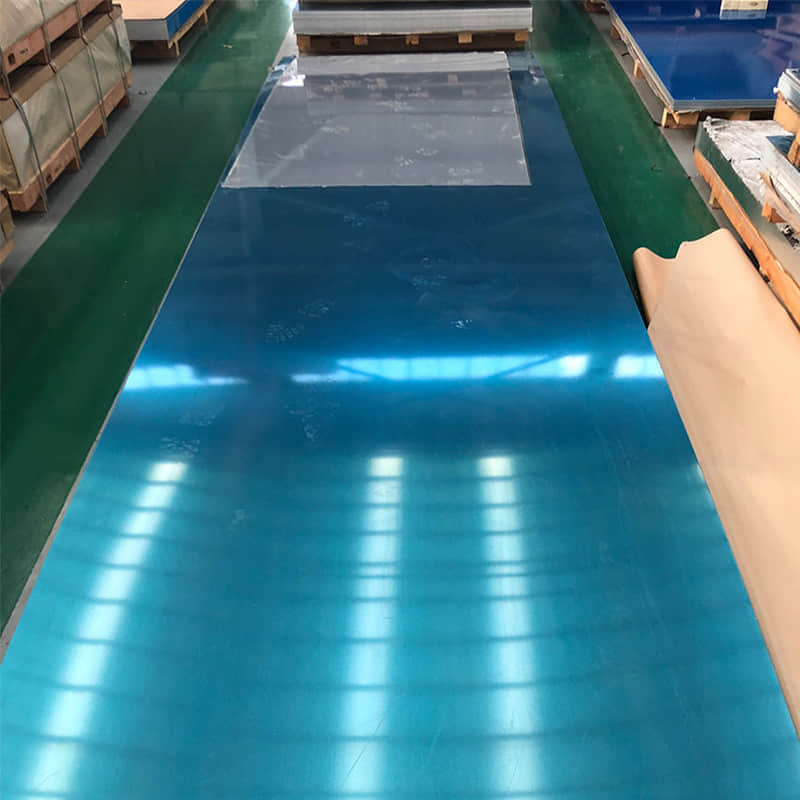

aluminum sheet formaing

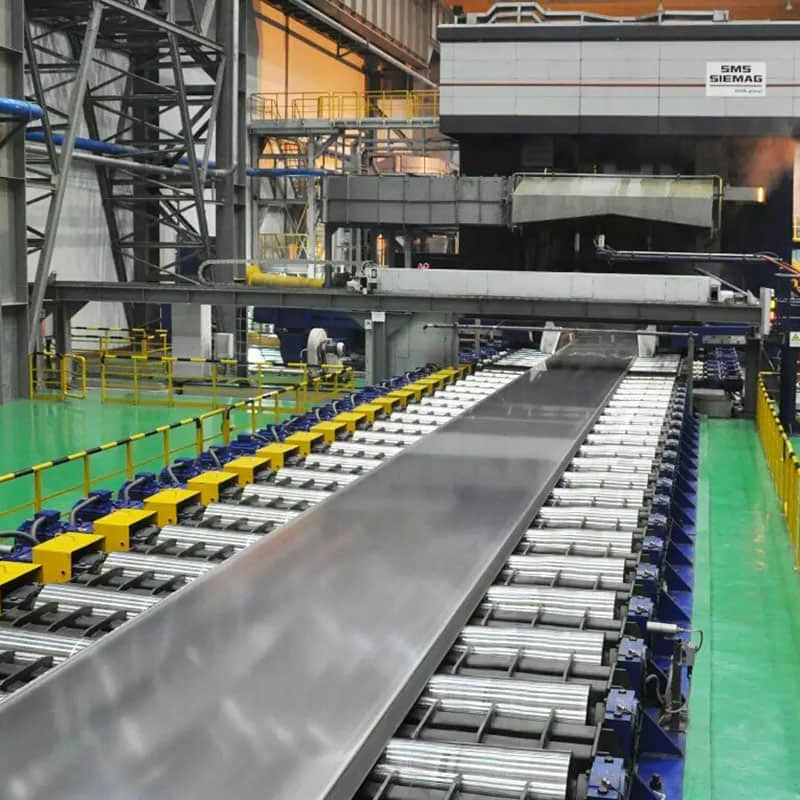

aluminum sheet rolling

The applications

Aluminum sheets are widely used in diverse of field due to corresponding grade of materials. Depending on what you're using it for, we can always offer suitable products of top level for you.

Alloy Application field
1xxx 1050 Insulation, food industry, decoration, lamp, traffic signs etc.
1060 Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts etc.
1070 Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc.
1100 Cooker, building material, printing, heat exchanger, bottle cap etc.
2xxx 2A12 2024 Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,car parts and various other structural parts.
3xxx 3003 Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building,construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc.
3004
3005
3105
5xxx 5052 Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device, equipment and medical device panel etc.
5005 Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
5086 Ship board, deck, bottom and edge panel etc.
5083 Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board,automotive and aircraft panel, cooling device and automotive molding etc.
5182
5454
5754 Tanker body, marine facilities, pressure container, transportation etc.
6xxx 6061 Railway inside and outside parts, board and bed plate.
6083 Industry molding
6082 Highly stressed applications includes roofing construction, transportation, and marine.
6063 Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
7xxx 7005 Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers
7050 Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment
7075 Aerospace industry, military industry, electronic etc.

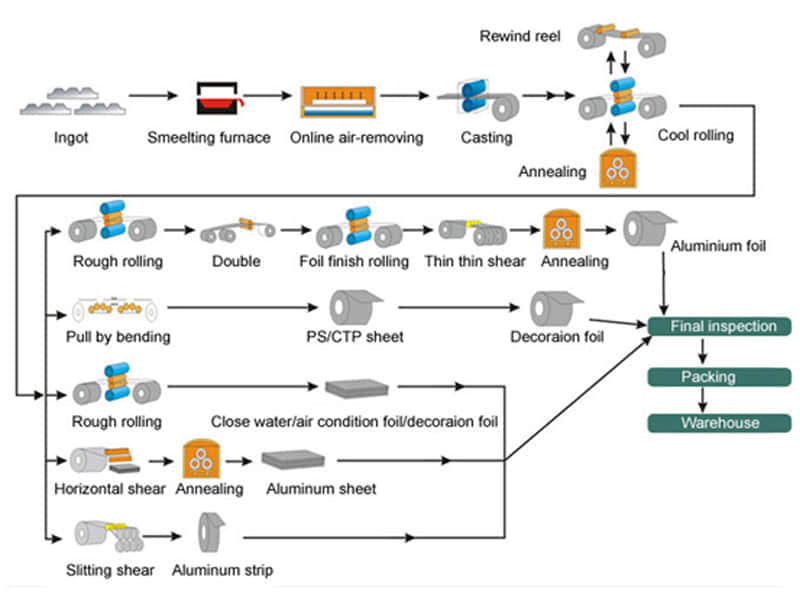

Manufacture process

aluminum sheet processing

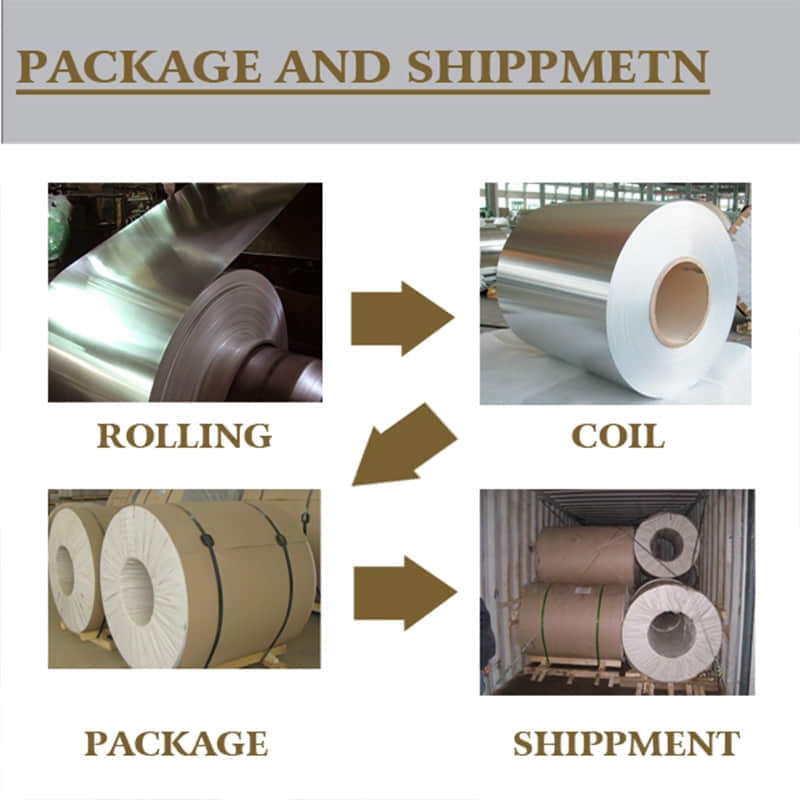

Inventory and delivery

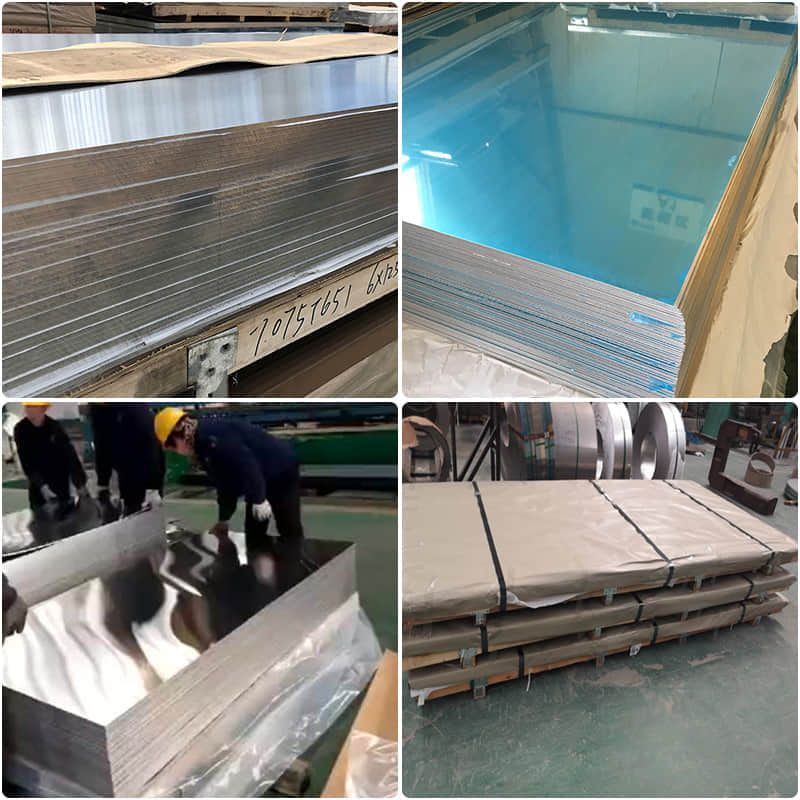

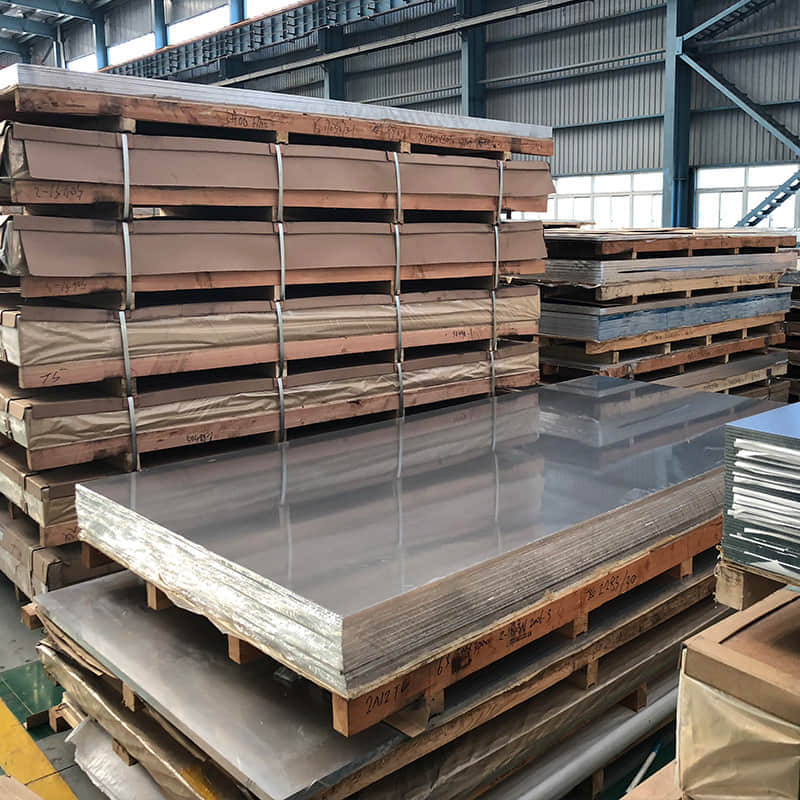

aluminum sheet inventory aluminum sheet package aluminum sheet packing and loading

FAQ

1) What is the delivery time?

It depends actual order, around 20 to 35 days

2)What is the QC system:

We have QC staff of 5 persons and advanced equipment, each production is with MTC traced from Aluminum ingot lot. According to the standard we will inspect every producing step.

3) How many tons one 20GP or 40GP could load?

One 20GP could load about 20tons, And 40GP load about 24tons.It depends on the different specification.

4) What market do you mainly sell to?

Australia, America, Asia, Middle East, Western Europe, Africa etc

5) What's your payment term?

Usually we do TT and LC or combined.

6) What's your trade term?

Usually we do CIF, FOB, EXW, CNF

7) Why AHL STEEL?

With us, you get most competitive price, guaranteed quality with assured delivery time and after sales service.
